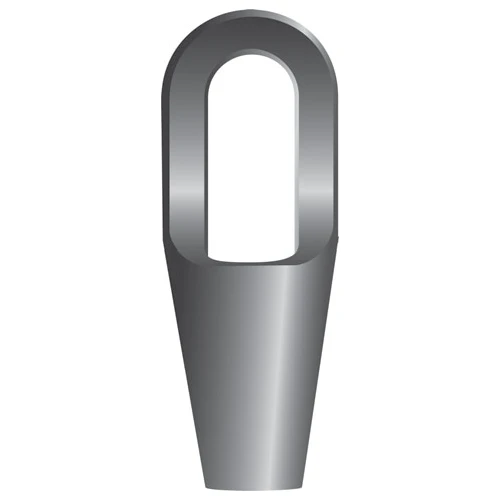

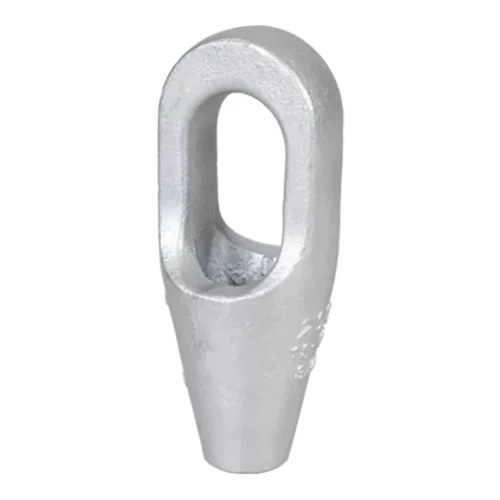

Green Pin® Closed Spelter Socket

Material:

High tensile steel, quenched and tempered

Finish:

Hot dipped galvanized

Temperature Range:

-20 °C up to +200 °C

Certification:

2.1 2.2 3.1 CE IIA

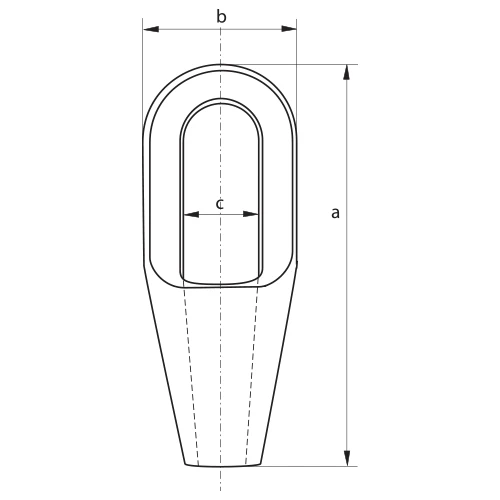

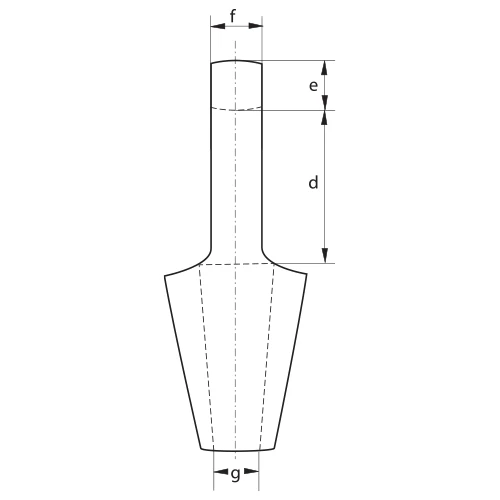

Number	Minimum Breaking Load t	Diameter Wire Rope (mm)	Length a (mm)	Width b (mm)	Width Inside Bow c (mm)	Length Inside Bow d (mm)	Thickness Bow e (mm)	Thickness Bow f (mm)	Opening g (mm)	Weight Each kg
296	8	6-7	101	37	22	40	11	13	9	0.27
297	12	8-10	119	43	25	48	14	17.5	12	0.43
298	20	11-13	140	52	30	58	18	23.5	15	0.76
299	25	14-16	162	68	37	66	21	26	17.5	1.52
200	45	18-19	194	76	42	78	27	32	21.5	2.31
201	70	20-22	224	92	47	90	33	38	24	4.31
204	85	23-26	253	104	57	103	36	44	28	6.03
207	105	27-30	282	114	63	116	39	51	32	7.99
212	136	31-36	312	127	70	130	43	57	38	10.9
215	150	37-39	358	136	79	155	51	63	41	13.8
217	170	40-42	390	146	83	171	54	70	44	17.4
219	225	43-48	443	171	93	198	55	76	51	26.9
222	280	49-54	502	193	100	224	62	82	57	38.8
224	360	55-60	548	216	112	247	73	92	63	54.7
226	425	61-68	597	241	140	270	79	102	73	70.8
227	460	69-75	644	273	159	286	79	124	79	102
228	560	76-80	686	292	171	298	83	133	86	123
229	625	81-86	743	311	184	311	102	146	92	152
230	720	87-93	788	330	197	330	102	159	99	178
231	875	94-102	845	362	216	356	108	178	108	233
233	1200	108-115	1000	405	235	425	125	190	125	329
240	1300	120-130	1150	450	260	525	125	200	143	453

CAD
