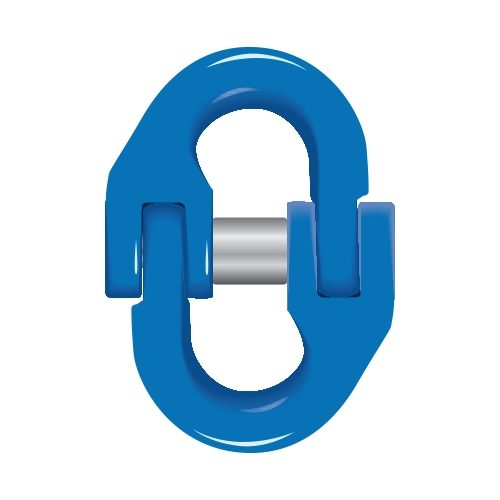

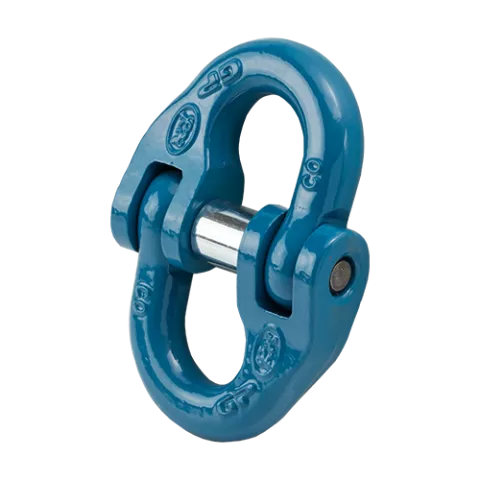

Green Pin® Connecting Link GR10

Product code:

UMJ

Material:

Alloy steel, grade 10, quenched and tempered

Safety Factor:

MBL equals 4 x WLL

Standard:

Follows the EN1677 with grade 10 values and conforms to ASTM A952/A952M

Finish:

Painted blue

Temperature Range:

-40 °C up to +200 °C

Certification:

2.1 2.2 3.1 MTC ^a MPI^b DGUV CE IIB

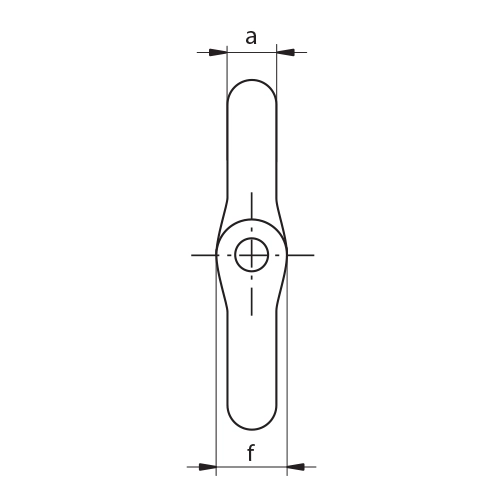

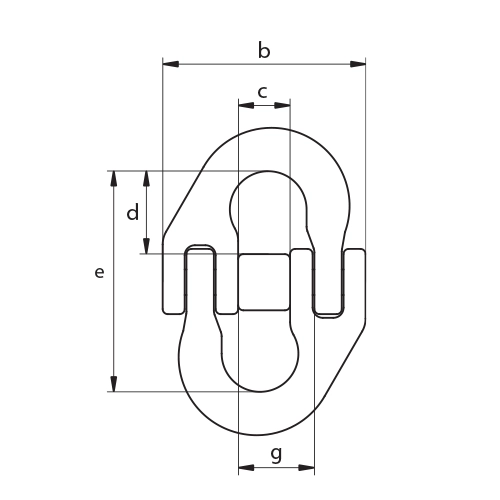

For Chain Diameter (mm)	Working Load Limit t	Diameter a (mm)	Width Outside b (mm)	Width Inside c (mm)	Length Inside d (mm)	Length Inside e (mm)	Diameter Eye f (mm)	Width Inside g (mm)	Weight Each (kg)
6	1.4	8	42	11	20	52	11	15	0.09
7	195	9	53	14	20	55	16	19	0.18
8	2.6	9	53	14	20	55	16	19	0.18
10	4	12	66	18	23	64	18	23	0.31
13	6.8	16	83	21	32	85	24	28	0.68
16	10.3	19	105	25	40	105	28	34	1.27
20	16	23	122	33	49	128	38	42	2.27

CAD INFO

Grade 10 Connecting Link
