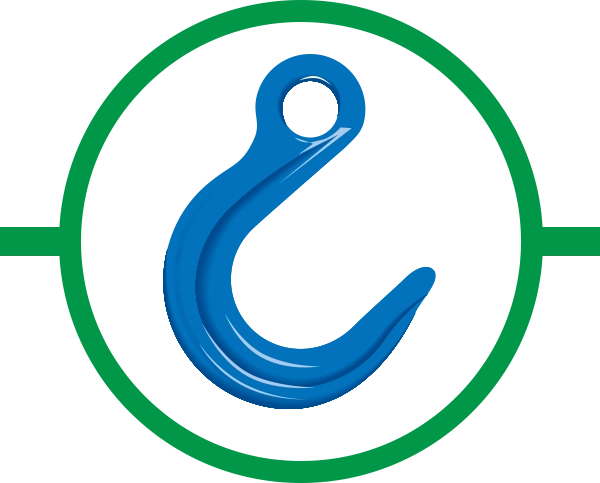

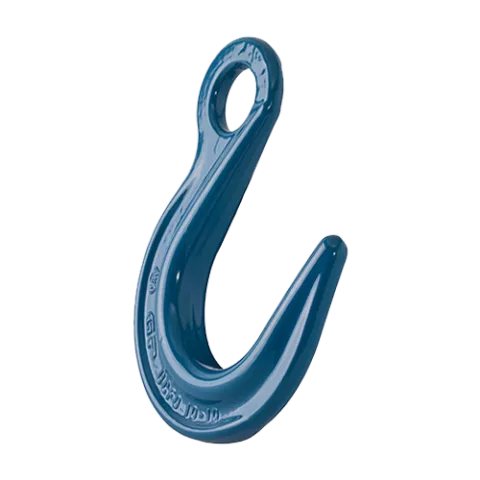

Green Pin® Foundry Hook E GR10

Product code:

UCFO

Material:

Alloy steel, grade 10, quenched and tempered

Safety Factor:

MBL equals 4 x WLL

Standard:

Follows the EN1677 with grade 10 values and conforms to ASTM A952/A952M

Finish:

Painted blue

Temperature Range:

-40 °C up to +200 °C

Certification:

2.1 2.2 3.1 MTC ^a MPI^b DGUV CE IIB

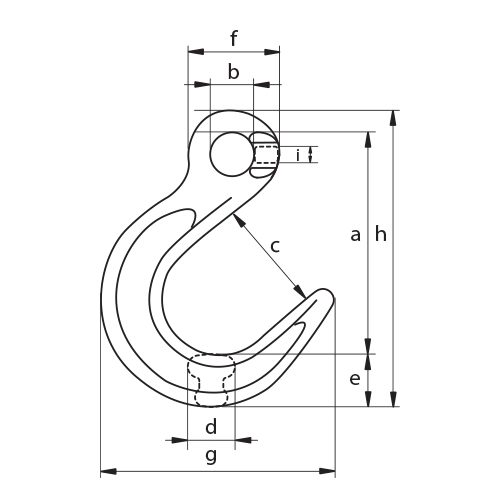

For Chain Diameter (mm)	Working Load Limit t	Length a (mm)	Diameter Eye Inside b (mm)	Width Opening c (mm)	Thickness d (mm)	Width e (mm)	Diameter Eye Outside f (mm)	Width Outside g (mm)	Length h (mm)	Thickness i (mm)	Weight Each (kg)
6	14	93	19	48	17	21	38	97	124	7	0.33
7/8	26	125	25	64	22	28	50	129	165	9	078
10	4	157	34	79	28	35	65	161	208	11	150
13	6:8	190	44	95	35	45	84	198	255	13	3

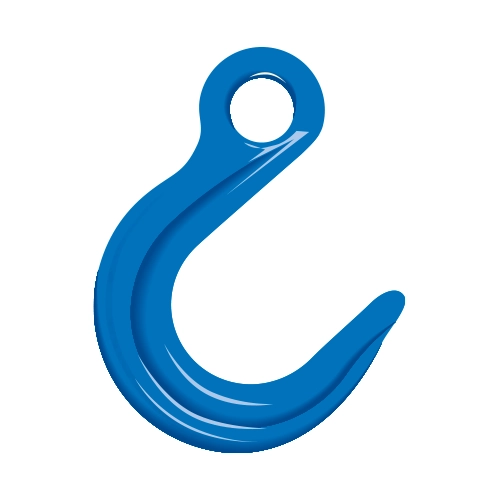

Grade 10 Eye Foundry Hook
