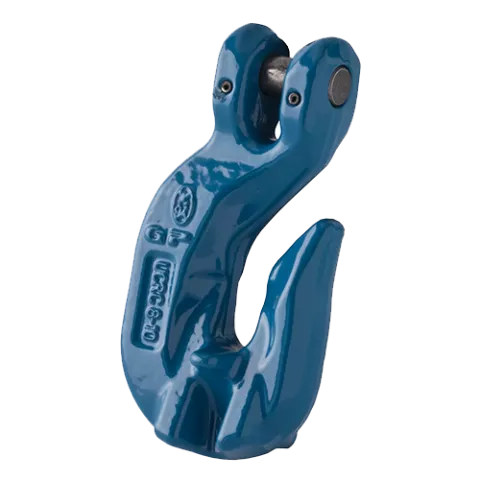

Green Pin® Grab Hook CL GR10

Product code:

UCRC

Material:

Alloy steel, grade 10, quenched and tempered

Safety Factor:

MBL equals 4 x WLL

Standard:

Follows the EN1677 with grade 10 values and conforms to ASTM A952/A952M

Finish:

Painted blue

Temperature Range:

-40 °C up to +200 °C

Certification:

2.1 2.2 3.1 MTC ^a MPI^b CE IIB

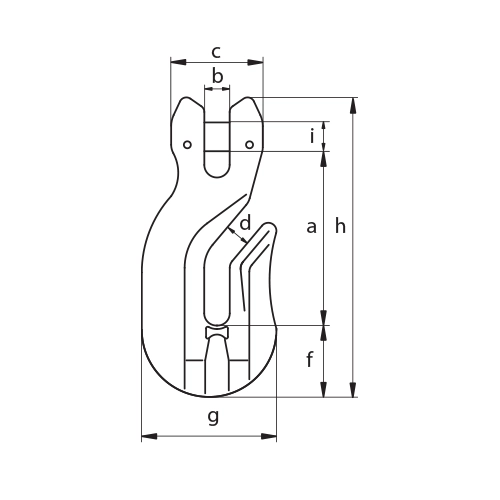

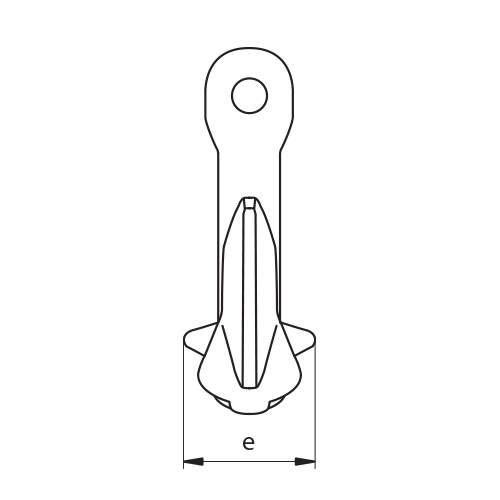

For Chain Diameter (mm)	Working Load Limit t	Length a (mm)	Width b (mm)	Width Outside c (mm)	Opening d (mm)	Thickness e (mm)	Width f (mm)	Width Outside g (mm)	Length Outside h (mm)	Diameter Pin i (mm)	Weight each (kg)
6	14	52	7	28	8	24	25	42	91	8	0.35
7	1.95	64	9	32	10	37	28	53	108	10	0.35
8	26	64	9	32	10	37	28	53	108	10	0.35
10	4	89	11	42	12	42	39	66	151	13	1.06
13	6.8	103	15	54	15	56	40	87	173	16	170
16	10.3	120	18	67	19	65	58	106	214	20	3.76

CAD INFO

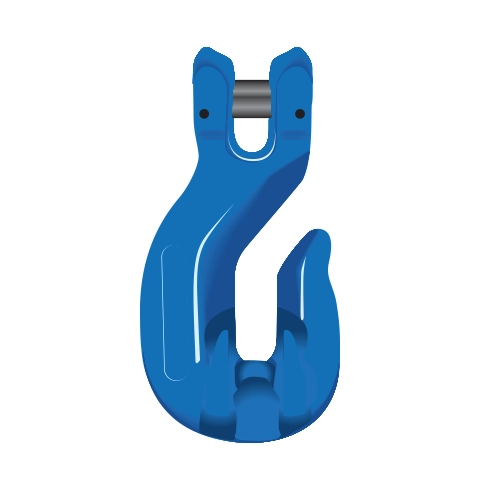

Grade 10 clevis grab hook
