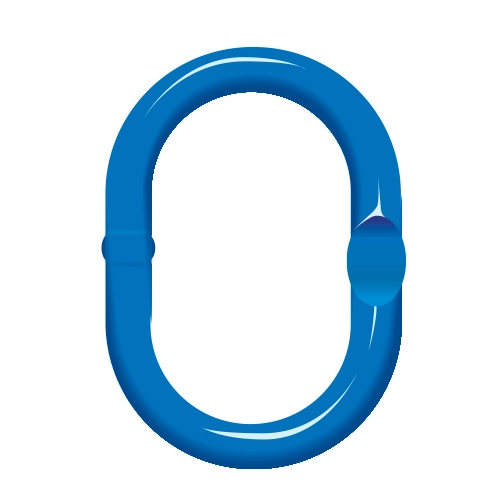

Green Pin® Master Link GR10

Product code:

UMS

Material:

Alloy steel, grade 10, quenched and tempered

Safety Factor:

MBL equals 4 x WLL

Standard:

Follows the EN1677 with values for grade 10 and conforms to ASTM A952/A952M and ASME B30.9

Finish:

Painted blue

Temperature Range:

-40 °C up to +200 °C

Certification:

2.1 2.2 3.1 MTC ^a MPI ^a CE IIB

Note:

For use of this component in a wire rope sling the safety factor must be 5 : 1

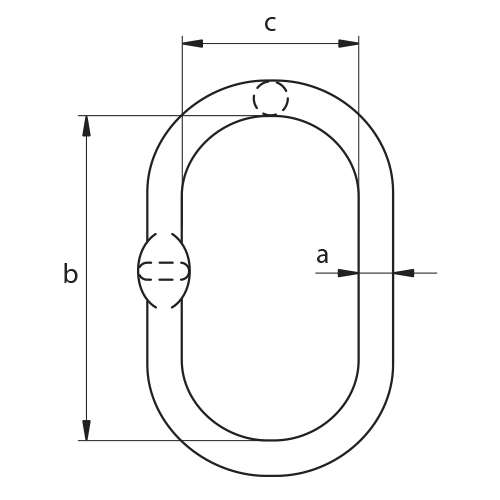

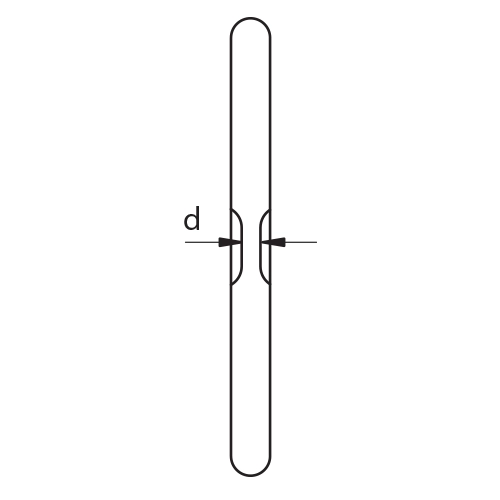

Diameter a (mm)	Diameter Chain 1 Leg mm	Diameter Chain 2 Legs ß ≤ 45° (mm)	Diameter Chain 2 Legs 45° < ß ≤ 60° (mm)	Working Load Limit t	Length inside b (mm)	Width Inside c (mm)	Thicnkess d (mm)	Width Each kg
13	6	6	6	2	115	60	7	0.4
16	8	0	8	3.2	120	70	7	0.6
18	10	8	10	5.4	135	75	9	0.84
22	13	10	13	8.2	170	90	11	1.6
25	16	13	16	11.2	190	103	14	2.17
30	18/20	16	18/20	16	235	125	17	4
38	22	20/22	22	27.6	250	150	22	710

CAD

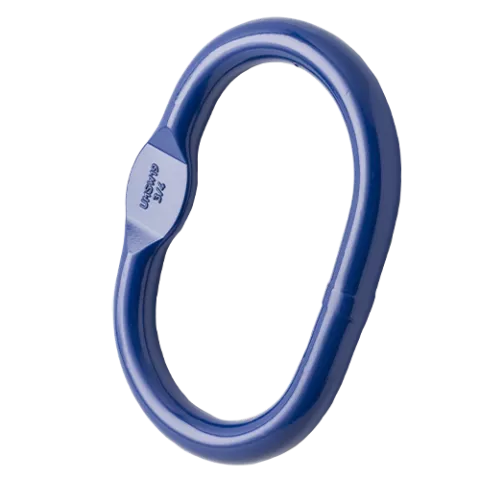

Grade 10 master link
