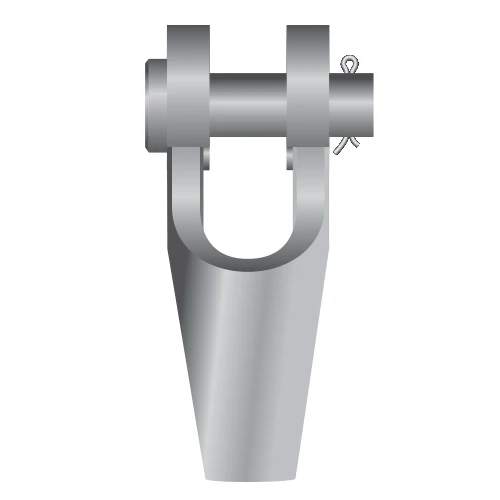

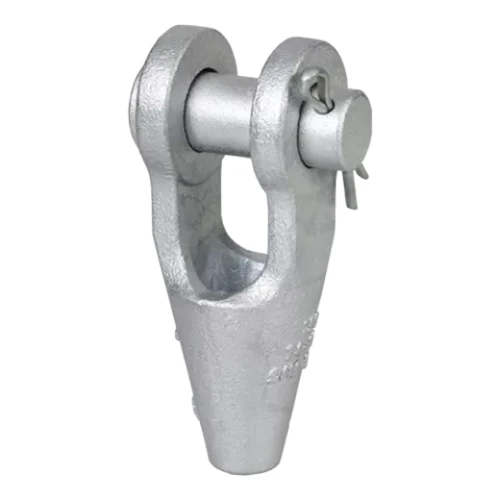

Green Pin® Open Spelter Socket CP

Material:

High tensile steel, quenched and tempered

Finish:

Hot dipped galvanized

Temperature Range:

-20 °C up to +200 °C

Certification:

2.1 2.2 3.1 CE IIA

Open spelter socket with cotter pin
Number	Minimum Breaking Load t	Diameter Wire Rope (mm)	Length a (mm)	Width b (mm)	Width Inside c (mm)	Diameter Pin d (mm)	Length Inside e (mm)	Opening f (mm)	Weight Pin kg	Weight Each kg
196	8	6-7	109	51	19	16	33	9	0.9	0.47
197	12	8-10	124	62	21	21	34	12	0.17	0.71
198	20	11-13	143	66	26	25	37	15	0.026	1.04
199	25	14-16	172	82	33	30	49	18	0.47	1.83
100	45	18-19	205	95	38	35	58	21	0.74	3.09
104	60	20-22	235	110	44	41	68	24	1.19	4.68
108	85	23-26	275	130	51	51	75	28	2.15	8.35
111	105	27-30	306	144	57	57	85	32	2.95	11.4
115	136	31-36	338	155	63	64	95	38	4.02	15.5
118	150	37-39	394	178	76	70	127	41	5.54	23.2
120	170	40-42	418	187	76	76	127	44	6.89	27.4
125	225	43-48	468	213	89	89	133	51	10.6	42.4
128	280	49-54	552	240	101	95	180	57	13.7	63.9
130	360	55-60	598	270	113	108	196	63	19.9	91.1
132	425	61-68	654	303	127	121	212	73	28.1	127
135	460	69-75	696	349	133	127	215	79	35.6	164
138	560	76-80	737	371	146	133	219	86	41.5	199
140	625	81-86	788	391	159	140	228	92	48.5	235
142	720	87-93	852	411	171	152	242	99	59.8	294
144	875	94-102	914	447	191	178	254	108	89	393
146	1200	108-115	1160	489	206	193	368	125	114	642

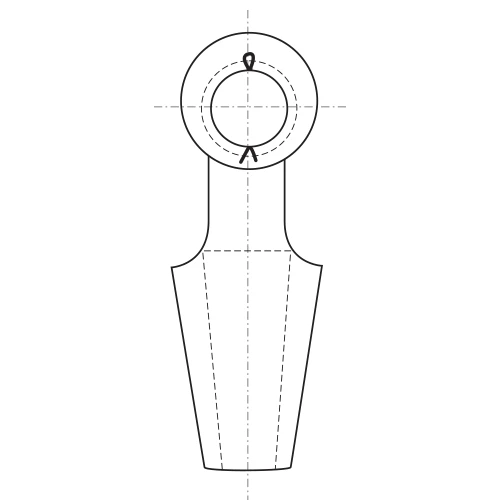

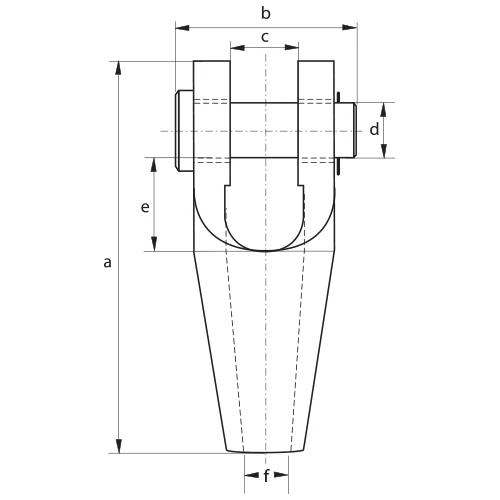

CAD

Open spelter socket with cotter pin
